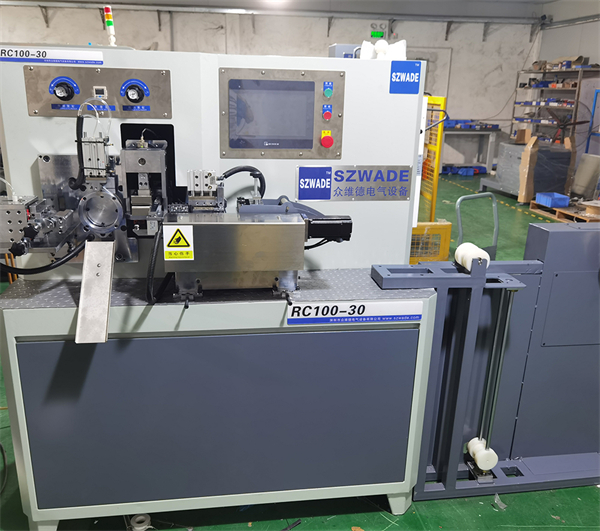

RC100-30 Silicon Steel Core Machine

Equipment Name: Computer-controlled Automatic Iron Core Rolling Machine (5-axis)
Equipment model: RC100-30
Device dimensions: 175CM * 85CM * 160CM
Equipment weight: 950KG
Power supply specification: 380VAC  50/60HZ
Power consumption: 1000W
Air pressure: 8KG
Interface Introduction: Simplified Chinese
Production function: Circular square shape
Number of servo axes: 5 axes
Minimum inner diameter: 9mm
Maximum inner diameter: 80mm
Maximum outer diameter: 100mm
Steel sheet width: 5 - 30 mm
Steel sheet thickness: 0.15 - 0.35 mm
The accuracy on both sides of the core is: < 0.1mm
Outer diameter of the discharge rack: 800mm
