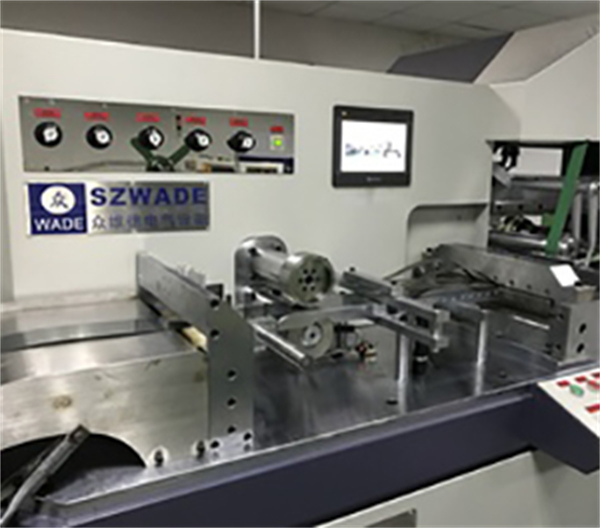

Open core winding machine

Technical specifications for open core winding machine:
Equipment Name: Folding Open Core CNC Forming Machine
Equipment model: JH-400
Equipment size: 220CM * 200CM * 180CM
Equipment weight: 1200KG
Power supply specification: 380VAC50/60HZ
Power consumption: 1000
Interface Introduction: Simplified Chinese
Production Function: Rectangular
Processing a single set of silicon steel sheets: sheet width 415mm
Processing dual group silicon steel sheets: sheet width 200mm
Steel sheet width: 100-400mm
Steel sheet thickness: 0.15-0.35mm
Accuracy on both sides of the iron core:<0.2mm
JH-400 type: a. Processing single group silicon steel sheets with a width of 415mm; b. Processing double group silicon steel sheets.
JH-600 type: Processing a single set of silicon steel sheets with a width of 600mm;
