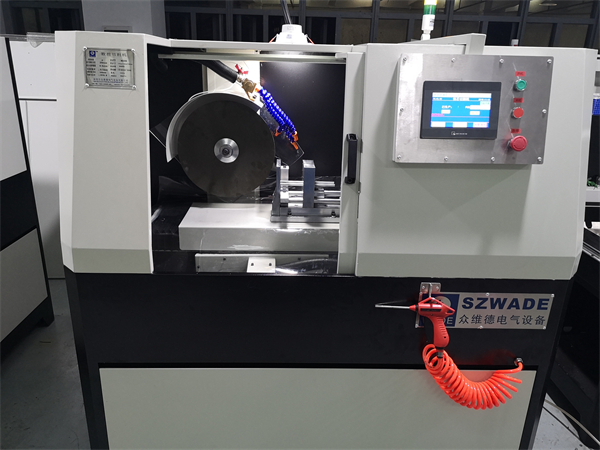

Open core cutting machine

Equipment name: CNC cutting machine

Device model: WD150
Device dimensions: 170CM * 130CM * 150CM
Equipment weight: 1000KG
Power supply specification: 380VAC  50/60HZ
Power consumption: 1400W
Interface Introduction: Simplified Chinese
Number of servo axes: 2 axes
Maximum outer diameter of the iron core to be cut: 250mm
Minimum cutting gap: 0.5mm
Cutting accuracy: ≥ 0.15mm
Maximum outer diameter of the cutting blade: 350mm
Cutting finish: ≥RY0.8
