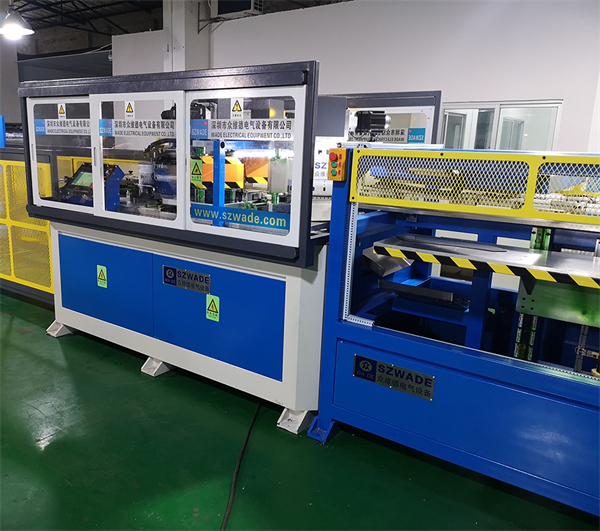

SCRV-200 iron core transverse cutting wire

Equipment brand: SZWADE
Equipment size:

1) Host: 240cm (L) x 125cm (W) x 170cm (H)
2) Dropping platform: 260cm (L) x 130cm (W) x 140cm (H)
3) Material dispenser: 140cm (L) x 90cm (W) x 180cm (H)
Equipment weight:
1) Host: 3200kg
2) Material unloading platform: 1000kg
3) Material dispenser: 1000kg
Power supply specification: 380VAC; 50/60Hz
Installed capacity: 23KW
Power consumption: 1.2 kWh/hour
Interface language: English/Simplified Chinese
Width: 40-200mm
Thickness: 0.2-0.5mm
Feed length: 200-2000mm
Length tolerance: ± 0.1mm (≤ 1000mm)
±0.2mm(＞1000mm)
Angle tolerance: ± 0.005mm
Feeding speed: 2000mm/s
