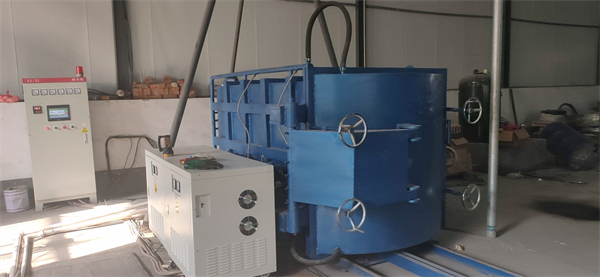

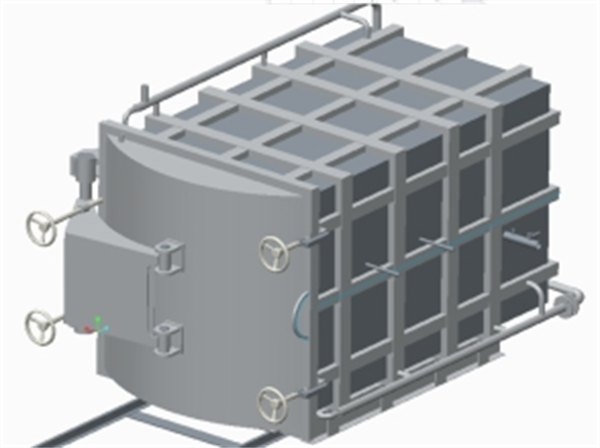

Iron core vacuum annealing furnace
Iron core annealing furnace
Product Name: Core Return Furnace
Main technical specifications
Maximum loading size: 1200X800X600mm
Maximum operating temperature: 950 degrees Celsius
Working temperature: 780-820 degrees Celsius
Temperature control section: Two zone temperature control
Heating power: 60KW
Temperature control accuracy: within 2 degrees
Uniformity of furnace temperature: within 5 degrees
Heating of furnace shell surface: 35 degrees Celsius+room temperature
Cooling fan power: 4.5KW
Maximum loading capacity at once: 2 tons
Cold vacuum degree: 50Pa
Static pressure rise rate: 50Pa/H
Maximum consumption of cooling water: 2-4T
