Core shaping machine

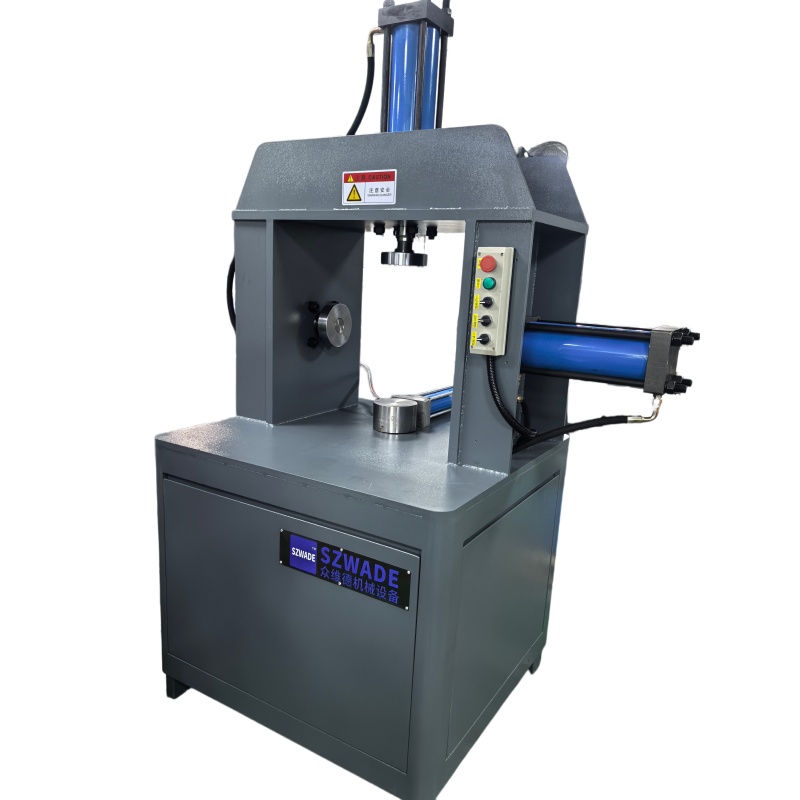

Iron core shaping machine
Equipment core information
Brand and Model: SZWADE Zhongweide Electrical Equipment
Processing purpose
Specially designed for radial and axial precision shaping and compaction of silicon steel cores in transformers and mutual inductors, correcting roundness, tightening the gap between laminations, making the core structure more compact and orderly, significantly improving magnetic performance, reducing iron loss, optimizing the dimensional accuracy and appearance of the circular core.
Equipment advantages
Up and down+lateral three cylinder synchronous hydraulic pressure, uniform and controllable pressure, stable shaping force without damaging the insulation layer of the silicon steel sheet; Closed loop CNC voltage regulation, suitable for various sizes of circular iron cores, with high concentricity and good forming consistency of finished products, is an essential precision shaping equipment for circular iron cores after annealing.
