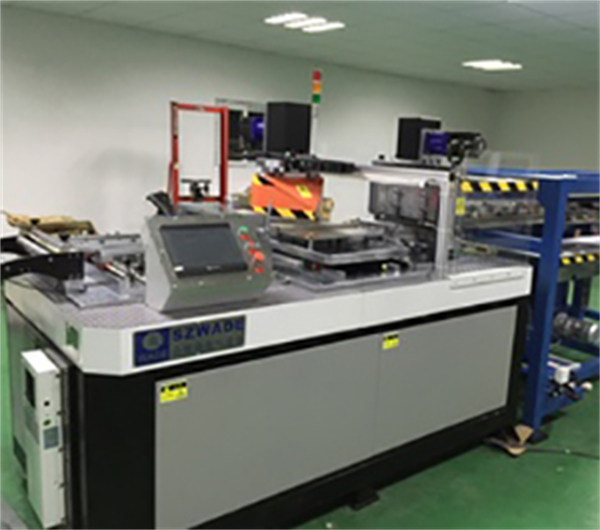

Economic type horizontal cutting line

Horizontal cutting line is used to unroll, level, cut metal coils into flat sheets of the required length, and stack them. Suitable for cutting various types of metal materials after surface coating, including cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel, etc.

The horizontal cutting production line is mainly composed of feeding trolley, uncoiler, leveling machine, feeding mechanism, shearing machine, conveying device, stacking device, etc. A longitudinal cutting machine can be configured in the production line to cut the sheet metal into the required width and length for cutting and stacking. It is a high-performance product that integrates machinery, electricity, and hydraulics. High degree of automation, simple and reliable operation. High precision in fixed length, high flatness of sheet metal, and neat stacking.
Classification of horizontal cutting lines:
1. According to the thickness of the board that can be horizontally cut, it is divided into thin plate horizontal cutting line (processing thickness 0.1-3.0mm) and thick plate horizontal cutting line (processing thickness 3.0-6.0mm).
2. According to the longitudinal cutting metal material, it can be divided into copper strip transverse cutting wire, stainless steel transverse cutting wire, cold plate transverse cutting wire, silicon steel transverse cutting wire, and tinplate transverse cutting wire.
3. According to the degree of automation, it can be divided into fully automatic horizontal cutting line and semi-automatic horizontal cutting line.
